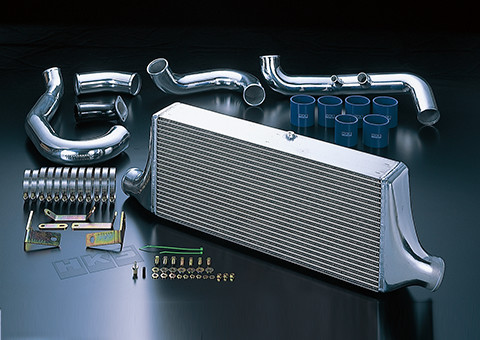

Mitsubishi EVO 10 – HKS R Type Intercooler Kit

Description

HKS Intercooler Kit for Mitsubishi LANCER EVOLUTION X CZ4A

■Features

• R type core, which is large capacity + low pressure loss type, was selected. Performance will be improved even with stock ECU.
• The side tank has effective usage of air flow of core bumper open from the intercooler entrance to exit.
• We made it very short piping layout and large radius of bending to reduce the bad response caused by front mount layout. So it will have about same as the stock intercooler boost pressure spooling.

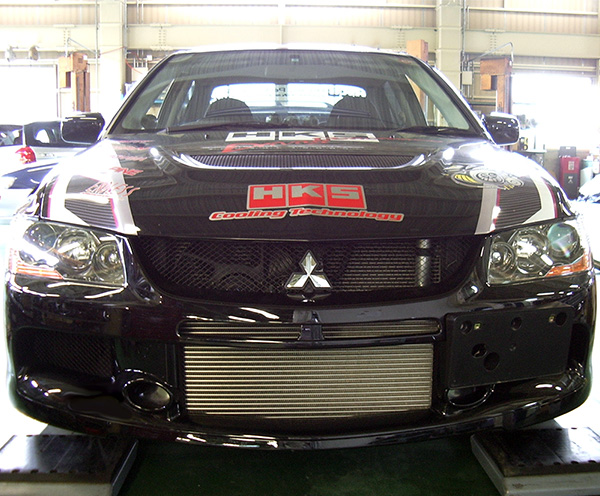

• Stock intercooler in the engine compartment, the core tends to accumulate the heat from engine and cause knocking for the starting. By putting the intercooler in front help prevent the knocking and make it unbreakable tuning.
• You can improve performance with normal ECU but using HKS F-CON iS/V Pro for setting let you have more and better performance.
• Lightweight R-Type core, which has high cooling efficiency and less pressure loss.
• In order to improve response, pipe is designed short and less bending layout.
• Just a small modification of front bumper is required for installation.
• High performance “φ70 Piping spec” and low cost “. (Stock Piping is φ60.)
• Core size (525 x 304 x 103), Stock (490 x 292 x 65)
• Stock air cleaner box, Racing Suction Reloaded, SSQV, Intercooler Piping Kit can be used together.



■PERFORMANCE





R-TYPE INTERCOOLER KIT V SYSTEM

Large capacity Intercooler core, which handles up to 500PS, and radiator are V mounted. Specially designed for FD3S RX-7. Because of the design, cooling air is used efficiently. For street, circuit and drift.





Vehicle	Model	Engine	Model Year	Type	Core Size・Location	Type	Code No.	Manual	Remarks
										LANCER EVOLUTION X	CZ4A	4B11	07/10 -15/09	R type INTERCOOLER	525×304×103・Front mount	R type AL	13001-AM006		φ70 pipe. Stock part(5256A832) is required for RS and all grade after 09/10.
