Ford Focus MK2 ST / RS – Xtreme 230mm Sprung hub Organic Twin Plate Clutch Kit
£1,566.64 Ex.Vat | £1,879.97 Inc.VAT
SKU# 39542 | MPN: KFD23648-2A
Xtreme Performance – 230mm Sprung hub Organic Twin Plate Clutch Kit Incl Flywheel & CSC 1000Nm
- Recommended for High horsepower street driven vehicles
- 12 month Manufacturers Warranty
Product Details
-
Clutch Disc Diameter (mm): 230
-
Clutch Disc Spline Count: 23
-
Clutch Disc Spline Diameter (mm): 26
-
Torque (Nm): 1000
-
Flywheel Step: +3.8mm
-
Design: Twin Plate
-
Stage: Multiplate – street use only
-
Clamp Load: 1300Kg
-
Weight [KG]: 15.79
Applications
|
FORD
|
FOCUS II
|
2005.10-2012.09
|
2.5 ST
|
HYDA 2522 Petrol 166 kW 225 BHP (2005.10 – 2012.09)
|
||
|
FORD
|
FOCUS II
|
2009-2012
|
2.5 RS
|
JZDA 2521 Petrol 224 kW 305 BHP (2009 – 2012)
|
||
|
FORD
|
MONDEO IV
|
2007.03-2012.12
|
2.5
|
HUBA 2521 Petrol 162 kW 220 BHP (2007.03 – 2012.12)
|
||
|
FORD
|
MONDEO IV
|
2007.03-2015.01
|
2.5
|
HUBA 2521 Petrol 162 kW 220 BHP (2007.03 – 2015.01)
|
||
|
FORD
|
MONDEO liftback (MA, MB, MC)
|
2007.03-2015.01
|
XR5 Turbo
|
HUBA 2521 Petrol 162 kW 220 BHP (2007.03 – 2015.01)
|
||
|
FORD
|
S-MAX (WA6)
|
2006.05-2014.12
|
2.5 ST
|
HUWA 2521 Petrol 162 kW 220 BHP (2006.05 – 2014.12)
|
Please scroll down for additional infomation.
Description
The Xtreme Clutch 230mm Clutch is available with either ceramic, organic or carbon friction materials, making these kits ideal for high horsepower street application.
The Xtreme 230mm Twin Plate Sprung Organic Clutch is the ultimate clutch solution for very high horsepower street vehicles that require reduced shock loading on the transmission in comparison to conventional rigid style discs.

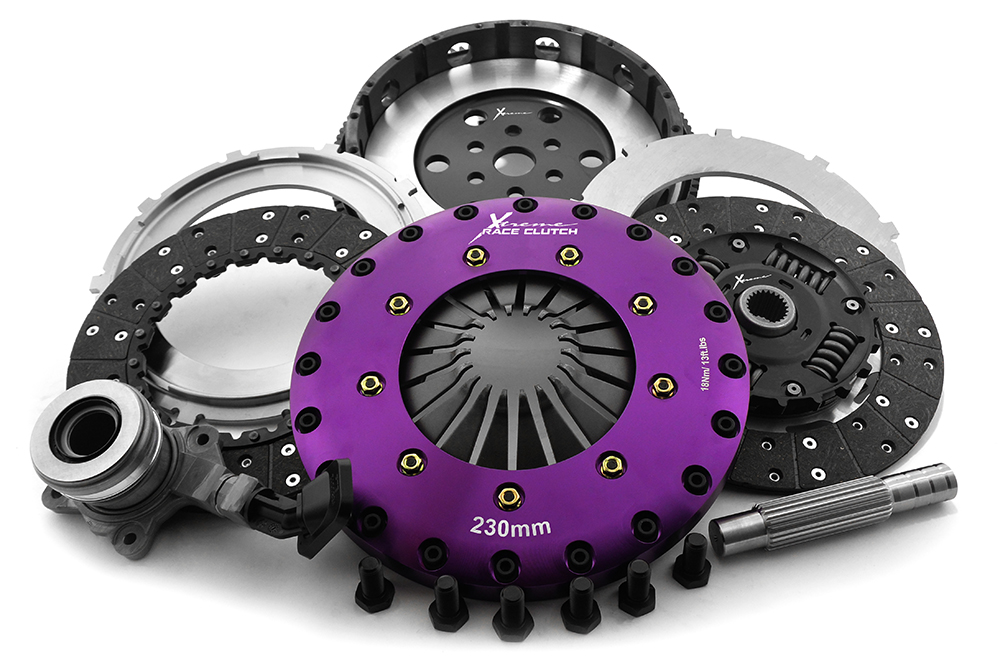

The 230mm range offers an exceptional torque capacity whilst retaining a lightweight design. Each 230mm kit includes a lightweight alloy pressure plate, choice of friction discs, performance flywheel and associated hardware including bearing, bolts and alignment tool. Xtreme Clutch 230mm upgrades have been designed to allow for extensive clutch operation options with internal hydraulic release bearings and pull-push conversions available for a variety of vehicles.
Product Features:
- Torque capacity 1000Nm
- Kit contains everything you need for a successful installation + accessories
- Push type billet alloy cover Low pedal effort
- 4140 Chromoly pressure & intermediate plates
- Chromoly adapter ring
- Low inertia
- Serviceable components
- SFI certified design
At Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.
For more information to check what’s the best clutch option available for your vehicle please follow the link:
Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.
