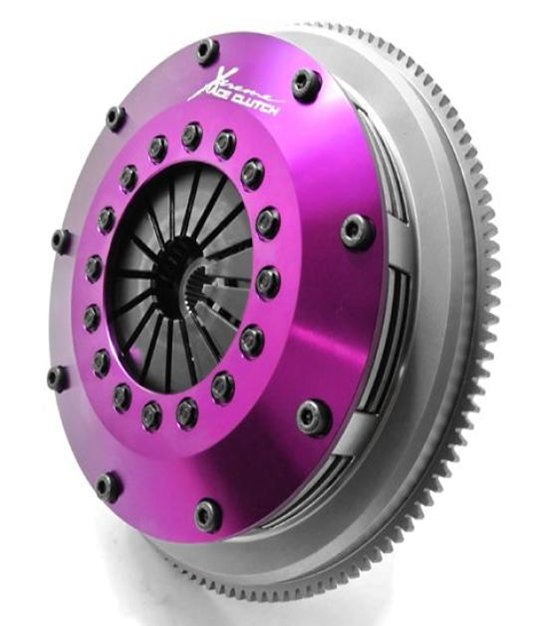

Nissan Skyline R32 GTR / R33 GTS – Xtreme 200mm Rigid Ceramic Twin Plate Clutch Kit (87087050)
£879.68 Ex.Vat | £1,055.61 Inc.VAT
SKU #4405
Manufacturer Part Number: KNI20520-2E
For more information to check what’s the best clutch option available for your vehicle please follow the link:
Nissan Skyline R32 GTR / R33 GTS – Xtreme 200mm Rigid Ceramic Twin Plate Clutch Kit
Technical Information:
Push Type
Will fit:
- Nissan Skyline R34 GTT
- Nissan Skyline R32 GTR/GTS
- Nissan Skyline R33 GTS/ GTS-T
Description
Manufacturer Part Number: KNI20520-2E
The Xtreme 200mm Race Clutch was developed with a focus on those interested in a cost-effective alternative compared to other race style clutch kits on the market but without having to compromise on quality. The 200mm Race Clutch Kits consist of a Billet Flywheel, Solid-centered Ceramic Clutch Plates, Cover assembly, Thrust Bearing & Carrier / or the Internal Concentric Slave Cylinder (CSC).
| Clamping Force | 1000kg | |
| Torque Rating | 1200Nm | |
| Bearing Contact Diameter | 44-52mm | |
| Bearing Load (@ 48mm) | 218kg | |
| Release Travel Required | 6mm | |
| Assembly Mass (without flywheel) | 7kg | |
| Disc Set Static Mass | 1.75kg | |
| Friction Thickness New | 7mm (0.275″) | |
| Friction Thickness Worn | 6.48mm (0.255″) | |

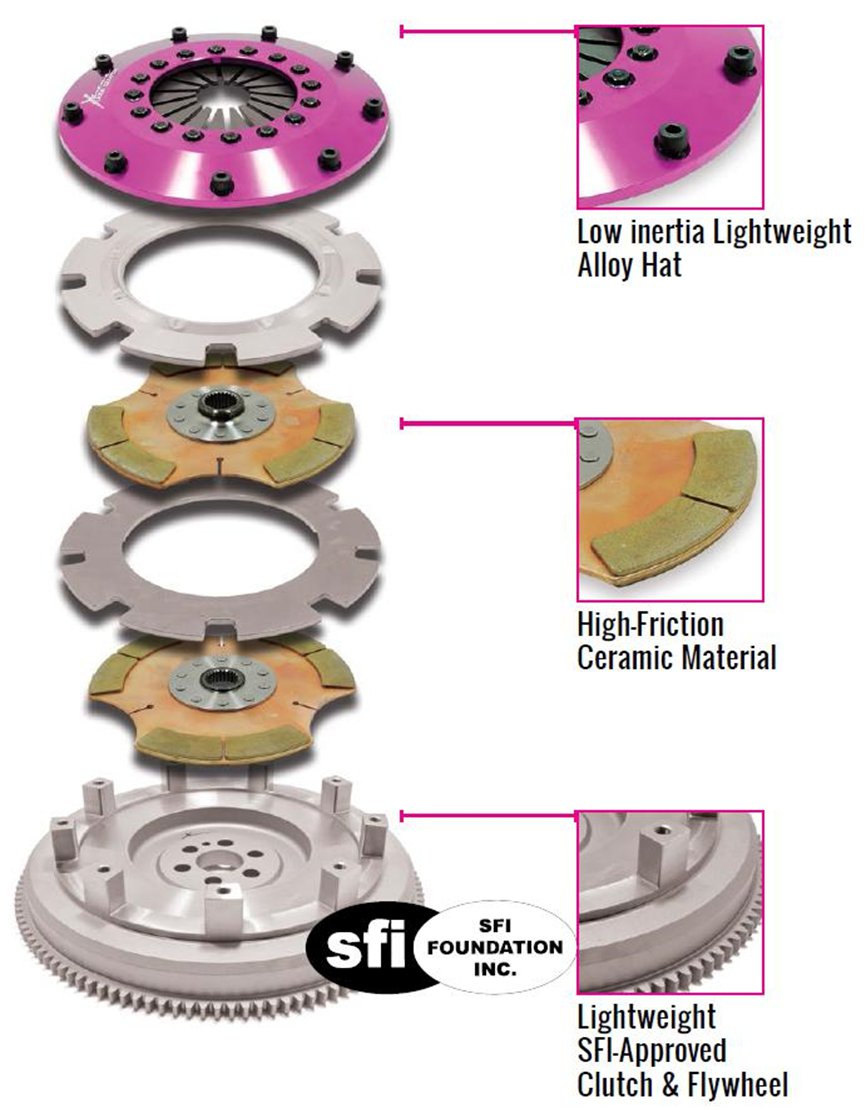

Product Features:
- Rigid driven discs (individual hubs)
- Push type billet alloy cover
- 4140 Chromoly pressure & intermediate plates
- Hardened steel wear posts
- Low inertia
- Serviceable components
- SFI certified design
Additional information
| Weight | 15 kg |
|---|---|
| Make | |
| Model | Skyline R32 GTR, Skyline R32 GTS, Skyline R33 GTS, Skyline R33 GTS-T, Skyline R34 GTT |
| Engine | |
| Brand | |
| Condition |
